Home Solar Energy Storage System

The inverter box consists of a solar panel, an energy‑storage battery, and an inverter. As an off‑grid system that operates independently, it integrates power generation, storage, and conversion. The solar panel charges the battery, and the inverter converts stored energy into AC current to power the load—solving electricity problems in areas without grid access or with unreliable supply. With a wide range of application scenarios and no dependence on the State Grid, it serves as a home‑based power‑supply solution.

Send Inquiry

Download

Description

Technical Specifications

Detail Showcase

Application

Products Features

Solar Panel

● High efficiency.

● High transmission tempered glass.

● Durable anodized aluminum frame.

● Efficient protection from frame deformation and water accumulation.

● Rugged design to withstand high wind pressure and snow load, easy installation.

Basic parameters

Open-Circuit Voltage (Voc) [V]	49.18V
Optimum Operating Voltage (Vmp) [V]	43.39V
Short-Circuit Current (Isc) [A]	7.61A
Optimum Operating Current (Imp) [A]	6.90A
Component Efficiency [%]	22.1%

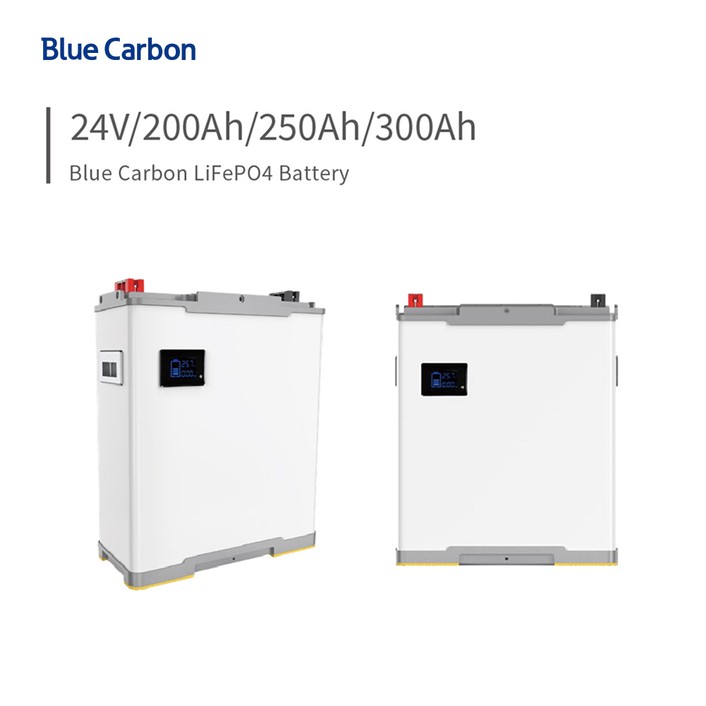

LiFePO₄ Battery

● High quality aluminium magnesium alloy, anti-corrosion, substantial,

durable, artistic, practical.

● All in one mould design and production, easy to install.

● With longer span life LiFePO₄ battery, ensure the whole set products'life span.

● Dustproof structure design, DC output, safe and reliable.

● Integrated packaging, safe and convenient to transport.

Basic parameters

Nominal Voltage	25.6V
Nominal Capacity	200Ah/250Ah/300Ah
Electricity (kWh)	5.12kWh/6.4kWh/7.68kWh

Inverter

This is a multifunctional solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries

Basic parameters

Rated Input Voltage (VAC)	208/220/230/240;L+N+PE
Voltage Range (VAC)	90~280±3 (normal mode);170~280±3 (UPS mode)
Frequency (Hz)	50/60 (Auto Adaptive)
Max Power (kw)	4kW
Frequency	50/60Hz±0.1%
Wave Form	Pure Sine Wave
Rated Voltage (VDC)	24
