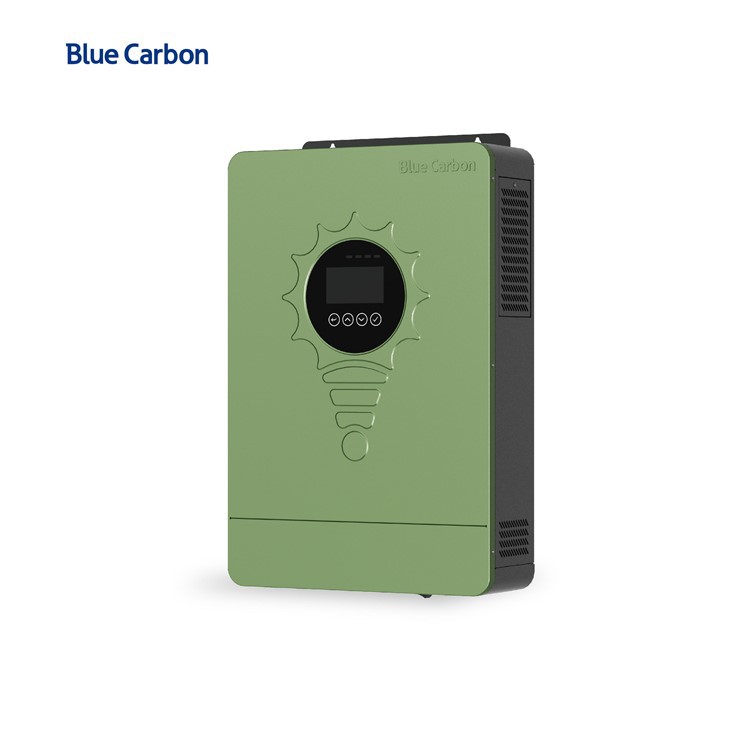

Introducing our Hybrid Solar Inverter with state-of-the-art features. This inverter seamlessly combines solar power, battery storage, and grid connectivity to provide a versatile and reliable energy solution. With a 24V battery and pure sine wave output, it ensures a consistent and stable power supply for your home or business.
Key Features
- Pure Sine Wave Output - Delivers clean, low-distortion AC power that's safe for sensitive electronics, medical devices and modern appliances.
- Off-Grid Capability - Operate independently of the grid or continue running critical loads during outages. Ideal for remote sites, cabins, and resilience-focused installations.
- MPPT Solar Charger - Built-in Maximum Power Point Tracking optimizes PV harvest under changing irradiance and temperature for higher overall system efficiency.
- Battery-Ready 24V Support - Seamless integration with 24V LiFePO₄ battery packs for reliable storage and fast charge/discharge cycles.
- Multi-Mode Flexibility - Supports on-grid, off-grid and hybrid operation modes to fit diverse project needs.
- Smart Charging & Controls - Intelligent charge algorithms prioritize solar first, then battery, reducing grid consumption and improving ROI.
Techniacl Parameters
|
Product Name |
4kW Hybrid Inverter |
||
| Model Number | BCT-FXC-4KW | ||
|
AC INPUT |
AC OUTPUT |
||
|
Rated Input Voltage (VAC) |
208/220/230/240;L+N+PE |
Voltage(VAC) |
208/220/230/240 |
|
Voltage Range (VAC) |
90~280±3(normal mode); 170~280±3(UPS mode) |
Frequency |
50/60Hz±0.1% |
|
Frequency(Hz) |
50/60 (Auto Adaptive) |
Wave Form |
Pure Sine Wave |
|
BATTERY |
INTERFACE |
||
|
Rated Voltage (VDC) |
24 |
Interface |
RS485 /RS232/USB/Dry Contact |
|
Battery Type |
Lithium and Lead-acid |
Monitoring |
WiFi(Optional) |
Customer Benefits
- Versatility: One device supports backup, self-consumption optimization and full off-grid setups - fewer components, simpler installs.
- Energy Independence: Store daytime solar and run loads at night or export during peak price windows (where regulations allow).
- Lower Bills & Faster ROI: MPPT maximizes PV output while battery storage enables peak shaving and Time-of-Use optimization.
- Protects Your Equipment: Pure sine output and smart battery management extend appliance life and reduce failure risk.
- Easy to Install & Operate: Integrated charger + inverter reduces wiring complexity; smart controls automate charging strategy.
- Choose sustainability, reliability, and efficiency with our Solar Panel Battery Power MPPT and Hybrid Solar Inverter 24V Battery Pure Sine Wave Off-Grid Solar Charger MPPT solutions. Empower your space with clean, green energy for a brighter future.
