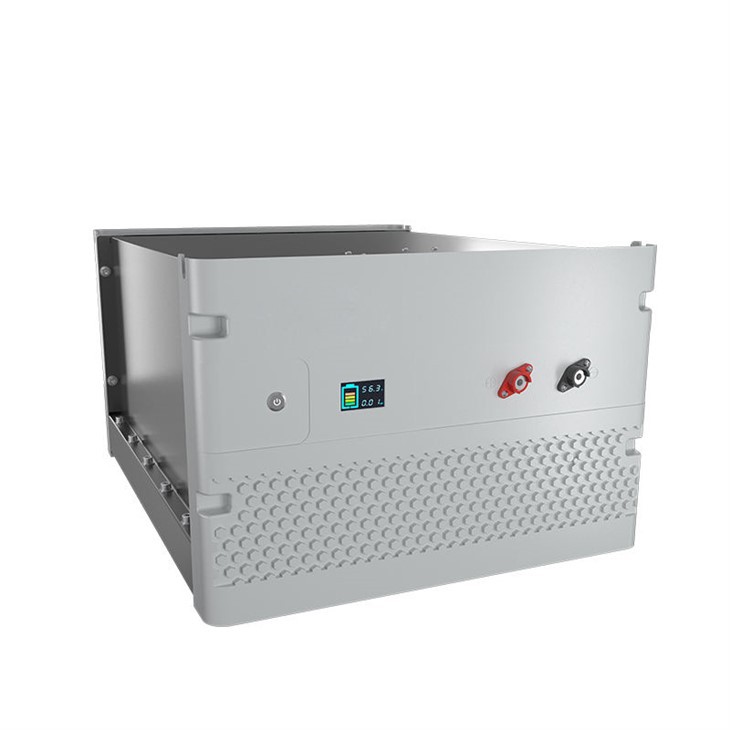

48V 200Ah LiFePO4 Battery Solar Power System
Introducing the future of sustainable energy! Discover our state-of-the-art solar energy storage plants that are revolutionizing the way we harness the power of the sun. With our innovative technology, we're able to capture and store excess solar energy, ensuring a continuous supply even after sunset. Say goodbye to dependence on fossil fuels and hello to a greener future for us and generations to come! Join the clean energy movement today and make a positive impact on the planet.
Additionally, our 48V lithium iron phosphate battery is engineered for hassle-free maintenance, reducing the overall cost of ownership. Its compact design and lightweight construction allow for easy installation, accommodating various space requirements. Moreover, the high energy density of the battery ensures maximum energy storage capacity in a minimal footprint.
|
Model
|
BCT-UU 48-200
BCT-UU 48-250
BCT-UU 48-300
|
|
|
Basic
Specifications
|
Nominal Capacity
|
200Ah/250Ah/300Ah
|
|
Nominal Voltage
|
48V (51.2V)
|
|
|
Electricity (kWh)
|
10.24kWh
12.8kWh 15.36kWh |
|
|
Input
|
Full Charge Voltage
|
58.4V
|
|
Maximum Charging Voltage
|
60V
|
|
|
Input Voltage Range
|
58V-60V
|
|
|
Continuously Use Input Current
|
120A
|
|
|
Maximum Solar Panel Input Current
|
120A
|
|
|
Overcharge Delay Protection
|
1000ms
|
|
|
Output
|
Continuously Use Output Current
|
120A
|
|
Discharge Cut-Off Voltage
|
44V-46V
|
|
|
Over-Discharge Delay Protection
|
1000ms
|
|
|
Short Circuit Protection Delay
|
300us
|
|
|
Short Circuit Protection Recovery
|
Disconnect Load
|
|
|
Instant Start Current
|
120A
|
|
|
Battery
|
Cell Type
|
LiFePO4 Battery/LFP
|
|
Storage Temperature Range
|
Short-Term -20℃-40℃ (Within 1 Month)
Long-Term 10℃-35℃ (Within 1 Year)
|
|
|
Operating Temperature Range
|
-15℃-60℃
|
|
|
Recommended Temperature Range
|
10℃-40℃
|
|
|
Storage Humidity
|
≤75％ RH
|
|
|
Atmospheric Pressure
|
Below the elevation of 5000m
|
|
|
Self-Discharge ( 25°C)
|
＜3％/Month
|
|
|
Depth Of Discharge
|
＞80％
|
|
|
C-rate Discharge
|
＜0.8C
|
|
|
Cycle Life
|
＞6000 times (＜0.5C)
|
|
|
Other
|
Certification Standards
|
UN38.3/CE/MSDS
|
|
Warranty
|
10 Years
|
|
|
Product Size
|
798±2×565±2×401±2mm
|
|
|
Packing Size
|
903±2×671±2×451±2mm
|
|
