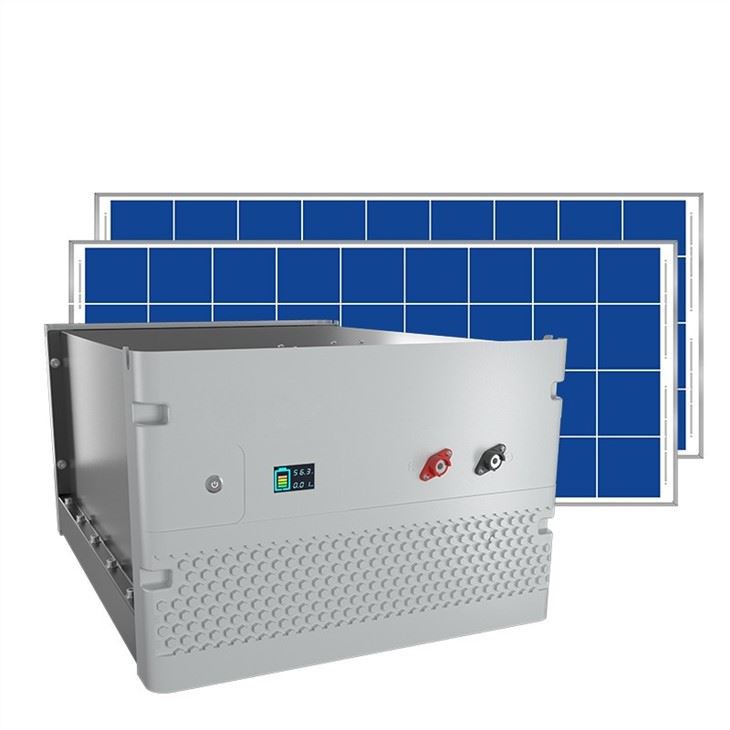

BCT-SPS 10KWH - 48V 200Ah Blue Carbon LiFePO4 in lithium ion batteries
The BCT-SPS 10kWh solar system can be charged by solar and AC, to store the electricity, with inverter built-in, can directly supply the power to the electric appliances when power outage. It is one comprehensive storage system integrating generation, storage and usage. Unlike generators, 10kWh solar system need no maintenance, no fuel consumption, and no noise, make your home lights always on, home appliances always run. It is easy to install, simple design, and perfect fit for a variety of architectural styles, apply for family, business, industry, aquaculture, planting, field work, camping tourism, night market, etc

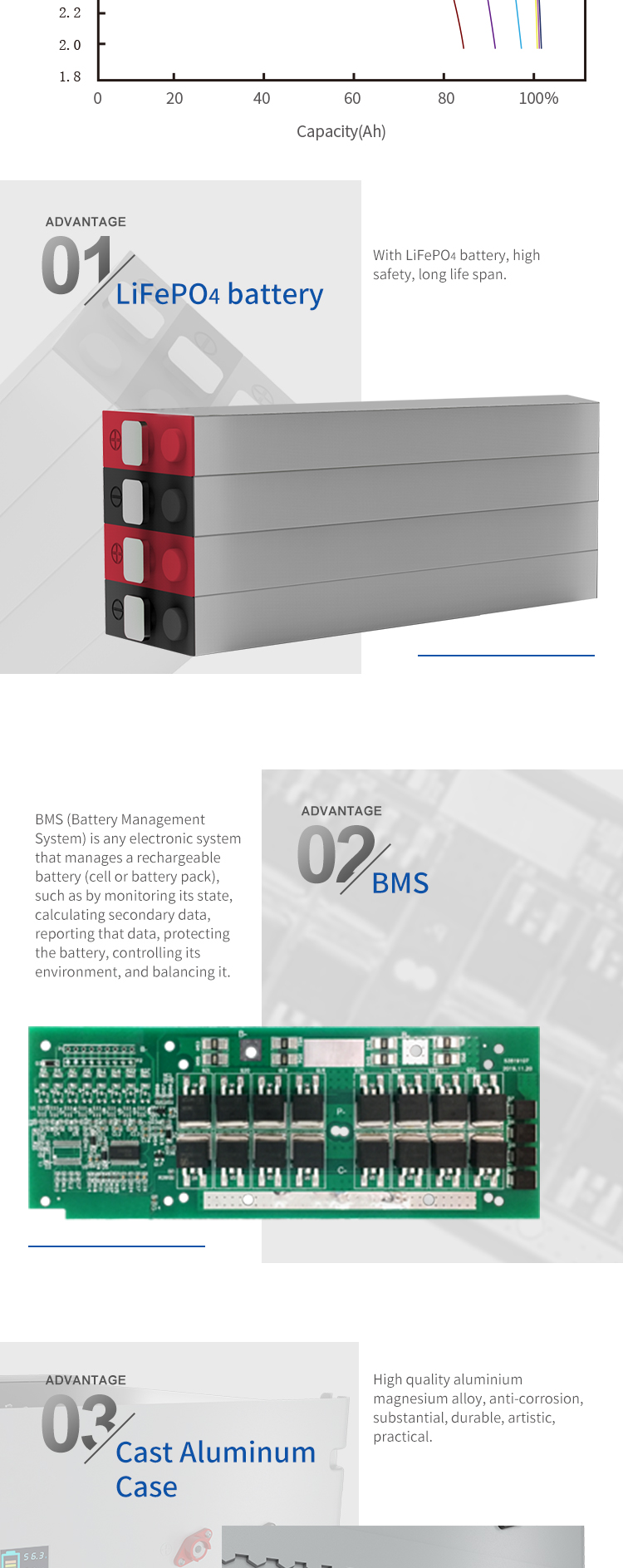

(1)Battery: 10kWh; LiFePo4 battery;
(2)Rated voltage: 25.6V
(3)Capacity: 200Ah/51.2V
(4)1.1KW built-in inverter/220V ouput, 50Hz
(5)Continuous input: 80A
(6)Continuous input: 80A
(7)Charging voltage: 57.6V-60V
(8)Cut-off:2.5V single cell
(9)Self-Discharge(25℃): <3%/month
(10)Depth of Discharge: up to 95%
(11)Working temperature: -20℃--70℃
(12)Recommendation temperature: 10℃--45℃
2 pcs AC output;
1 pc Solar input;
1 pc Electric input;

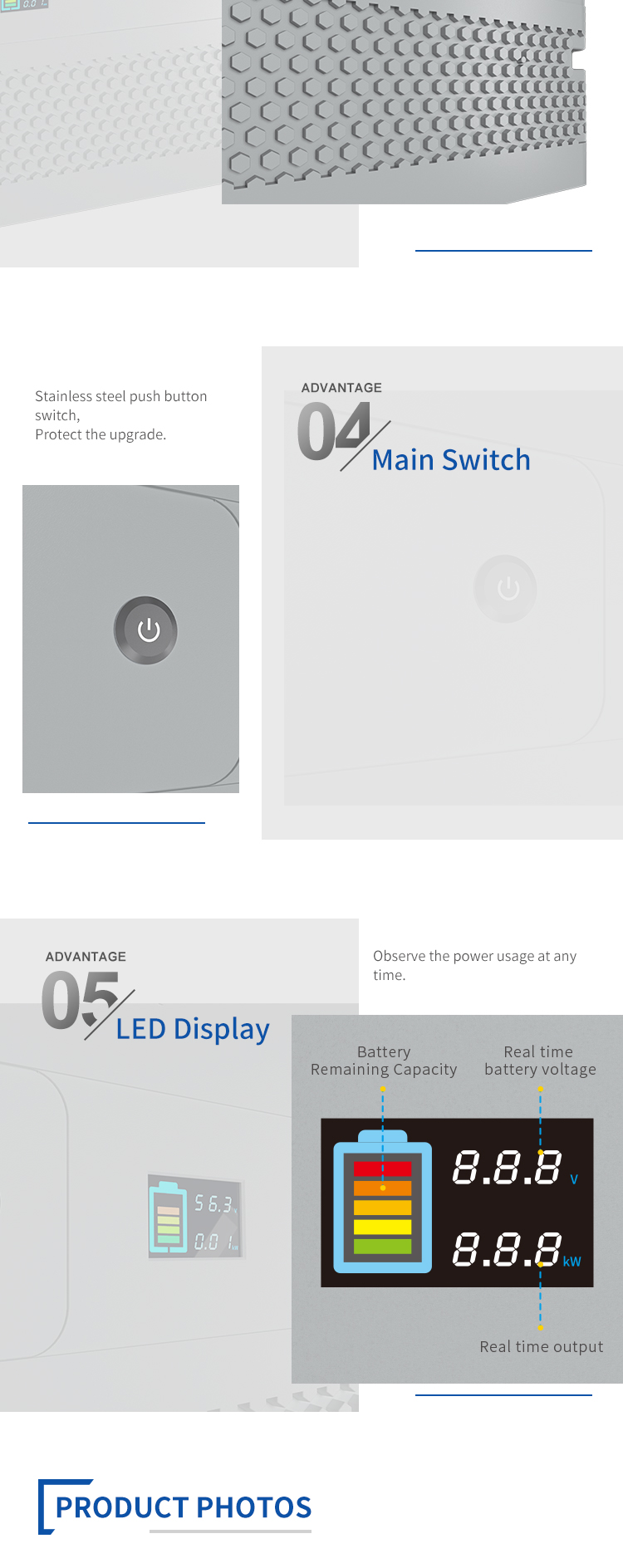

1 pc screen
Technical Parameters:
| Model | BCT-SPS 10kWh | ||
| Storage capacity | 10240Wh | ||
| Standard capacity | 200Ah/51.2V | Standard charging voltage | 57.6V-60V |
| Continuously use input current | 80A | Continuously use output current | 80A |
| Charging voltage of solar panel | 88V | Rshoot delay protection | 1000mS |
| Max input current | 80A | Cut-off | 2.5v Single cell |
| Self-Discharge | <3%/month | Depth of Discharge | >80% |
| Charge Method(CC/CV) | Operation:-20°C-70°C;Recommendation:10°C-45°C | ||
| Warranty | 5 years | ||
| Product Size | 781±2*566± 2*406± 2mm | ||
A:Yes, we welcome sample order to test and check quality
2. Q:What about the lead time?
A:Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
3. Q: Do you have any MOQ limit?
A:Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
4. Q: How do you ship the goods and how long does it take to arrive?
A:It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
5. Q:How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
6.Q:What is the terms of payment?
A:T/T, L/C, Alipay, for T/T it is 30% for deposit, the balance 70% before shipment for bulk order.
7.Q:How about the after sales service?
A:Blue Carbon welcome you contact us at 24 hours per day, 7days per week,your any questions will be highly appreciated.
