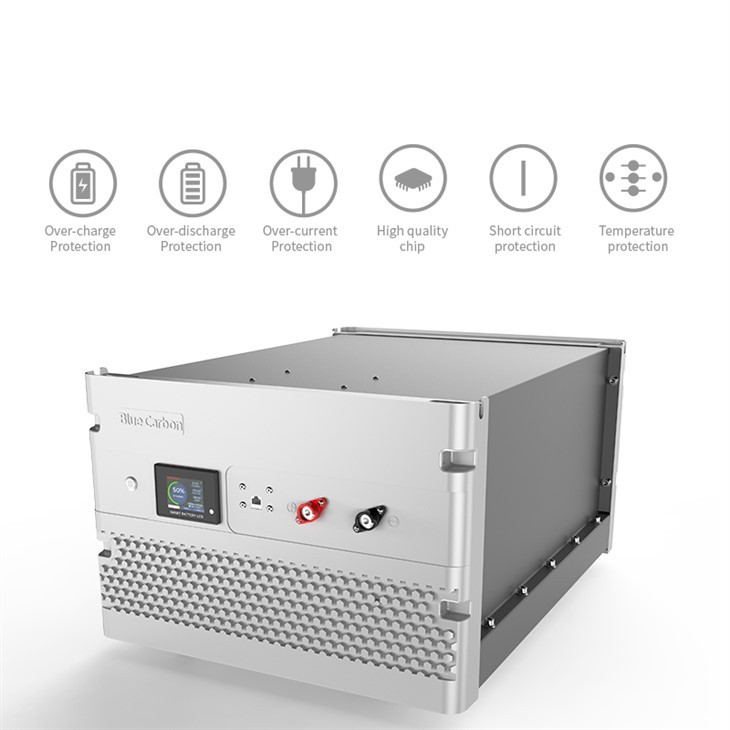

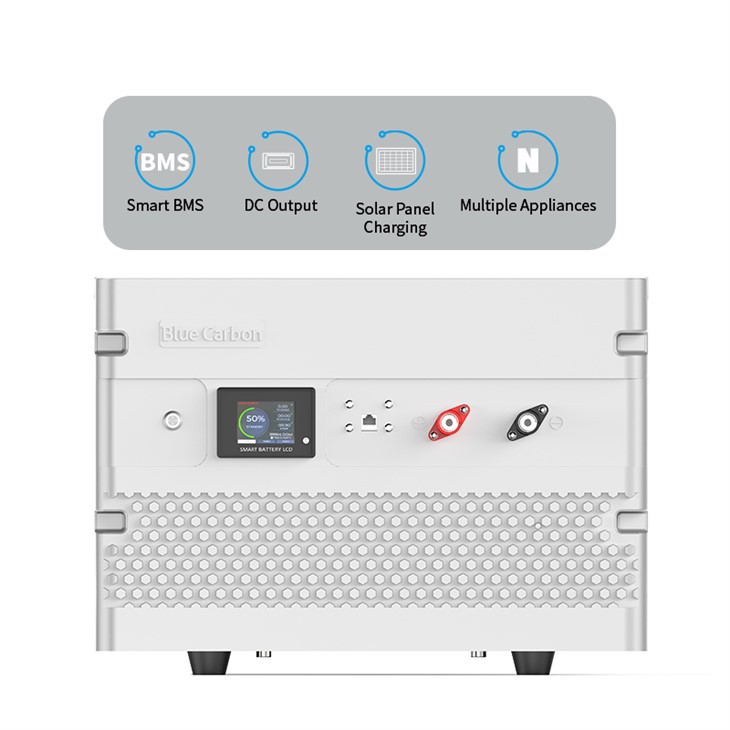

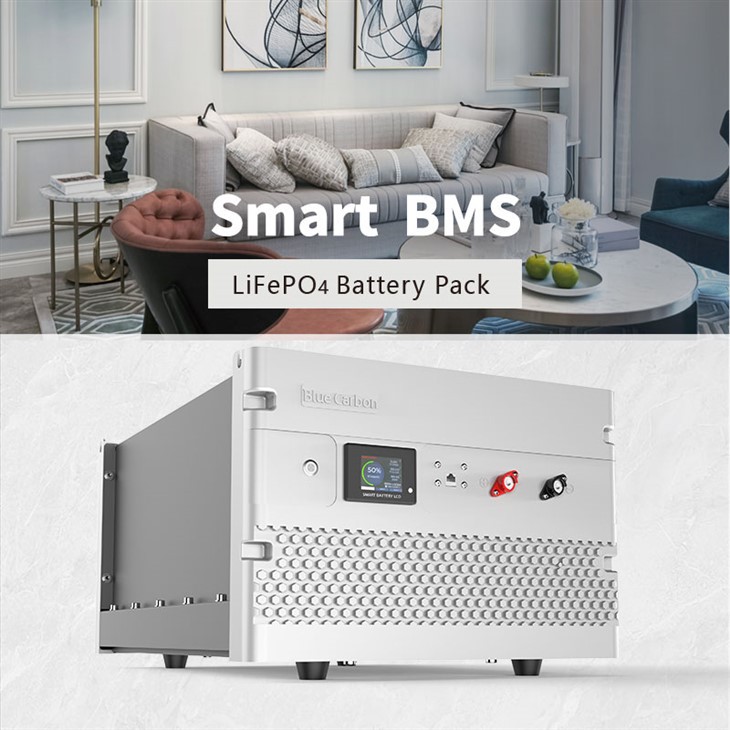

48V 200Ah 250Ah 300Ah Cast Aluminium Solar Energy Battery with BMS
- Built with lithium iron phosphate (LiFePO4) cells, this battery guarantees exceptional safety and reliability. LiFePO4 technology offers stable voltage output, reduced self-discharge rates, and an extended cycle life compared to conventional lead-acid batteries.
- The cast aluminum casing provides excellent durability, protecting the battery against external elements and ensuring long-lasting performance. The aluminum construction also facilitates efficient heat dissipation, promoting the longevity of the battery and preventing overheating.
- With a 48V(51.2V) voltage rating, this solar energy storage battery ensures efficient energy transfer and minimizes energy losses during charging and discharging. The 48V configuration makes it compatible with most solar systems, allowing for seamless integration into your existing setup.
- The battery's storage capacity depends on your specific requirements, ranging from 10 kWh to 15 kWh. This capacity enables you to store excess solar energy and utilize it when needed, providing a consistent power supply during peak demand or when solar generation is limited.
Invest in our 48V solar energy storage battery for reliable power storage and make the most of your solar energy system. Enjoy uninterrupted power supply and reduce your dependence on the grid, while contributing to a sustainable future.
Product Parameters
|
Model
|
BCT-UU 48-200
BCT-UU 48-250
BCT-UU 48-300
|
|
|
Basic
Specifications
|
Nominal Capacity
|
200Ah/250Ah/300Ah
|
|
Nominal Voltage
|
48V (51.2V)
|
|
|
Electricity (kWh)
|
10.24kWh
12.8kWh 15.36kWh |
|
|
Input
|
Full Charge Voltage
|
58.4V
|
|
Maximum Charging Voltage
|
60V
|
|
|
Input Voltage Range
|
58V-60V
|
|
|
Continuously Use Input Current
|
120A
|
|
|
Maximum Solar Panel Input Current
|
120A
|
|
|
Rshoot Delay Protection
|
1000ms
|
|
|
Output
|
Continuously Use Output Current
|
120A
|
|
Discharge Cut-Off Voltage
|
44V-46V
|
|
|
Over-Discharge Delay Protection
|
1000ms
|
|
|
Short Circuit Protection Delay
|
300us
|
|
|
Short Circuit Protection
Recovery
|
Disconnect Load
|
|
|
Instant Start Current
|
120A
|
|
|
Battery
|
Cell Type
|
LiFePO4 Battery/LFP
|
|
Storage Temperature Range
|
Short-Term -20℃-40℃ (Within 1 Month)
Long-Term 10℃-35℃ (Within 1 Year)
|
|
|
Operating Temperature Range
|
-15℃-60℃
|
|
|
Recommended Temperature Range
|
10℃-40℃
|
|
|
Storage Humidity
|
≤75％ RH
|
|
|
Atmospheric Pressure
|
Below the elevation of 5000m
|
|
|
Self-Discharge ( 25°C)
|
＜3％/Month
|
|
|
Depth Of Discharge
|
＞80％
|
|
|
C-rate Discharge
|
＜0.8C
|
|
|
Cycle Life
|
＞6000 times(＜0.5C)
|
|
|
Other
|
Certification Standards
|
UN38.3/CE/MSDS
|
|
Warranty
|
10 years
|
|
|
Product Size
|
798±2×565±2×401±2mm
|
|
|
Packing Size
|
903±2×671±2×451±2mm
|
|
1kWh solar system can be charged by solar, to store the electricity,with inverter built-in,can directly supply the power to the electric appliances when power outage.It is one comprehensive storage system integrating generation, storage and usage. Unlike generators, 1kWh solar system need no maintenance,no fuel consumption, and no noise,make your home lights always on, home appliances always run. It is easy to install, simple design, and perfect fit for a variety of architectural styles, apply for family, business, industry, aqua culture,planting,field work,camping tourism,night market, ect.
