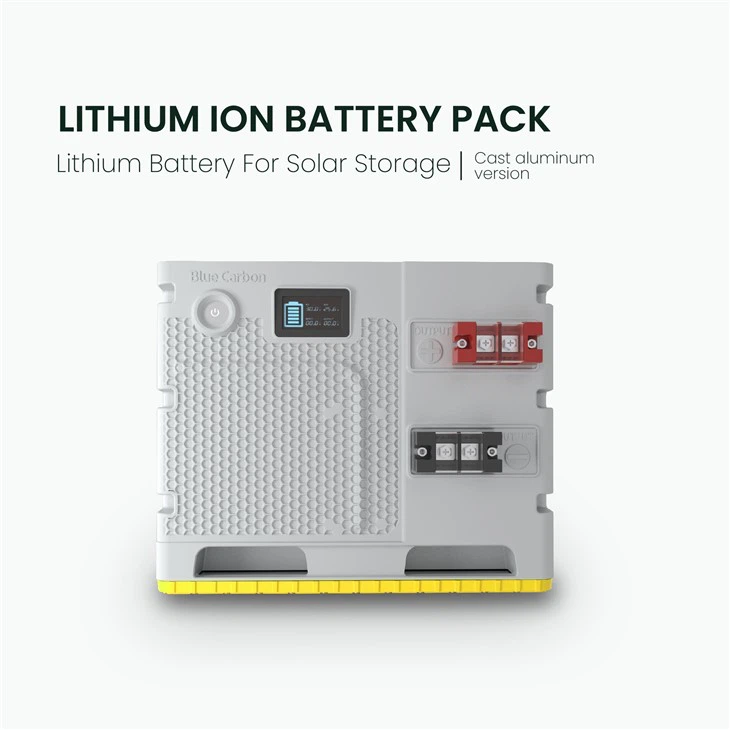

24V 200Ah 250Ah 300Ah LiFePO4 Solar Storage Battery for Small & Medium Businesses

24V 200Ah 250Ah 300Ah LiFePO4 Solar Storage Battery for Small & Medium Businesses

1. High-quality aluminum magnesium alloy, anti-corrosion, substantial, durable, artistic, practical.
2. All in one mould design and production, easy to install
3. With a longer lifespan LiFePO4 battery, over 12 years lifespan, ensure the whole set of products' life span
4. Dustproof structure design, DC output, safe and reliable
5. Integrated packaging, safe and convenient to transport.
Send Inquiry
Description
Technical Specifications
Detail Showcase
Application

24V 200Ah 250Ah 300Ah LiFePO4 Solar Storage Battery for Small & Medium Businesses



  • The battery pack is built around an advanced Battery Management System (BMS) that continuously monitors voltage, temperature, and current to maintain safe and stable operation under daily cycling conditions. Every protection function works automatically in the background, helping extend service life while reducing operational risk.
  • High energy density allows more usable power to be delivered within a compact structure, making installation easier where space is limited. The system supports efficient charging performance, enabling shorter recharge periods and improved energy availability throughout the day.
  • Designed for real operating environments, the battery maintains stable performance across a wide temperature range and features a low self-discharge rate, allowing long storage periods without significant capacity loss. Its lithium iron phosphate chemistry eliminates hazardous materials such as lead or mercury, supporting safer and environmentally responsible energy storage.
  • The battery performs reliably under high current discharge conditions and can be expanded through parallel or series configurations when system capacity needs increase. Reinforced structural design improves resistance to vibration and mechanical impact, making the system suitable for residential, commercial, and light industrial solar applications.



UU24-1

UU24-8

UU24-2

UU24-3

UU24-4

UU24-7

UU24-5

UU24 -10

Product Parameters



Model

BCT-UU 24-200

BCT-UU 24-250

BCT-UU 24-300

Basic Specifications

Nominal Capacity

200Ah/250Ah/300Ah

Nominal Voltage

24V (25.6V)

Electricity (kWh)

5.12kWh
6.4kWh
7.68kWh

Input

Full Charge Voltage

29.2V

Maximum Charging Voltage

30V

Input Voltage Range

28V-30V

Continuously Use Input Current

80A

Maximum Solar Panel Input Current

80A

Overcharge Delay Protection

1000ms

Output

Continuously Use Output Current

80A

Discharge Cut-Off Voltage

20V-24V

Over-Discharge Delay Protection

1000ms

Short Circuit Protection Delay

300us

Short Circuit Protection Recovery

Disconnect Load

Battery

Cell Type

LiFePO4 Battery/LFP

Storage Temperature Range

Short-Term -20℃-40℃ (Within 1 Month)

Long-Term 10℃-35℃ (Within 1 Year)

Operating Temperature Range

-15℃-60℃

Recommended Temperature Range

10℃-40℃

Storage Humidity

≤75% RH

Atmospheric Pressure

Below the elevation of 5000m

Self-Discharge ( 25°C)

<3%/Month

Depth Of Discharge

>80%

C-rate Discharge

<0.8C

Cycle Life

>6000 times (<0.5C)

Other

Certification Standards

UN38.3/CE/MSDS

Warranty

10 years

Product Size

616±2×356±2×292±2mm

Package Size

680±2×430±2×372±2mm
