Lithium Ion Battery 48V Battery Lithium Ion Solar Battery Price Off-grid Solar Power System

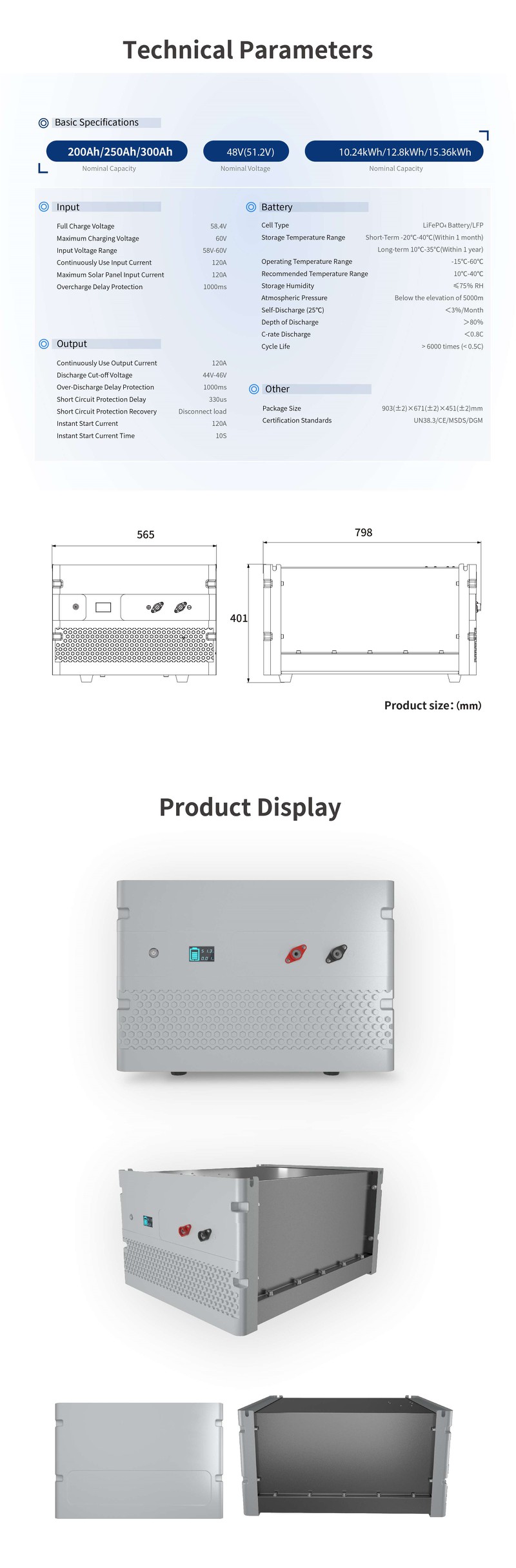

Technical Parameters
|
Warranty
|
10 Years
|
|
Place of Origin
|
Rizhao, Shandong China
|
|
Brand Name
|
BLUE CARBON TECH ( BCT)
|
|
Model Number
|
BCT-UU 48-200/250/300
|
|
Application
|
Home, Office, Commercial, Residential, Non-residential
|
|
Solar Panel Type
|
Monocrystalline Silicon
|
|
Battery Type
|
Lithium Ion
|
|
Mounting Type
|
Ground Mounting, Roof Mounting, Carport Mounting
|
|
Product Name
|
LiFePO4 Battery Pack
|
|
Electricity
|
10240Wh/12800Wh/15360Wh
|
|
Nominal Capacity
|
200Ah/250Ah/300Ah
|
| Nominal Voltage | 48V(51.2V) |
| Continuously Use Input Current |
120A
|
|
Continuously Use Output Current
|
120A |
|
Input Voltage Range
|
58V-60V
|
|
Discharge Cut-off Voltage (V)
|
44V-46V |
|
Self-Discharge ( 25 ℃)
|
< 3%/Month
|
| Depth of Discharge | >80% |
| C-rate Discharge | <0.8C |
|
Cycle Life
|
>6000 times (< 0.5C)
|
| Operating Temperature Range | -15℃~60℃ |
| Recommended Temperature Range | 10℃~40℃ |
Products Description
Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
