Products Features

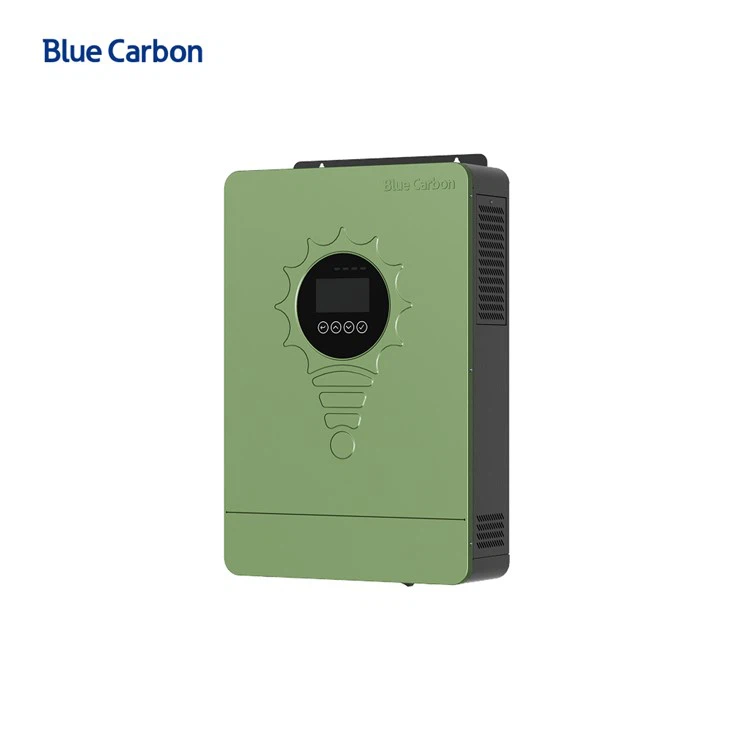

4kW SINGLE PHASE SOLAR INVERTER
Versatile All-in-One Design
Integrates MPPT charge controller, high-frequency inverter, and UPS in a compact design-ideal for Hybrid Inverters backup and self-consumption.
5-Year Warranty
Comprehensive 5-year warranty for reliable after-sales support.
High Performance & Efficiency
4kW output, 40-450V MPPT range, high-frequency conversion, and pure sine wave AC for stable power.
Adaptive Battery Compatibility
Operates with or without a battery, supporting various energy storage solutions, including lithium batteries with activation support.
Scalable & Versatile
Dual AC output supports diverse loads, with solar and grid power supply working simultaneously. Compatible with generators.
Smart Monitoring & Battery Support
100A solar charger, optional WiFi/GPRS, and CAN/RS485 for intelligent BMS communication.
Products Details
High-Efficiency MPPT – MPPT range of 40V-450V, supports 500Voc, delivers pure sine wave AC output, and functions without a battery.
Dual Power Supply – Simultaneously utilizes solar and grid power, offering flexible and reliable connectivity.
Smart Communication – Built-in CAN/RS485 ports for seamless BMS integration, with optional WiFi/GPRS remote monitoring.
Easy Maintenance – Equipped with a removable dust cover for enhanced durability and hassle-free upkeep.
| AC INPUT | |
| Rated Input Voltage(VAC) | 208/220/230/240;L+N+PE |
| Voltage Range(VAC) | 90~280±3(normal mode);170~280±3(UPS mode) |
| Frequency(Hz) | 50/60(Auto Adaptive) |
| AC OUTPUT | |
| Voltage(VAC) | 208/220/230/240 |
| Frequency | 50/60Hz±0.1% |
| Wave Form | Pure Sine Wave |
| CHARGER(PV/AC) | |
| Solar Charger Type | MPPT |
| Max PV Input Current /Input Power | 18A/5000W |
| MPPT Range@Operating Voltage(VDC) | 40~450 |
| BATTERY | |
| Rated Voltage(VDC) | 24 |
| Battery Type | Lithium and Lead-acid |
| INTERFACE | |
| Interface | RS485/RS232/USB/Dry Contact |
| Monitoring | WiFi(Opptional) |
Products Information
Solar System Connection
