Product Feature

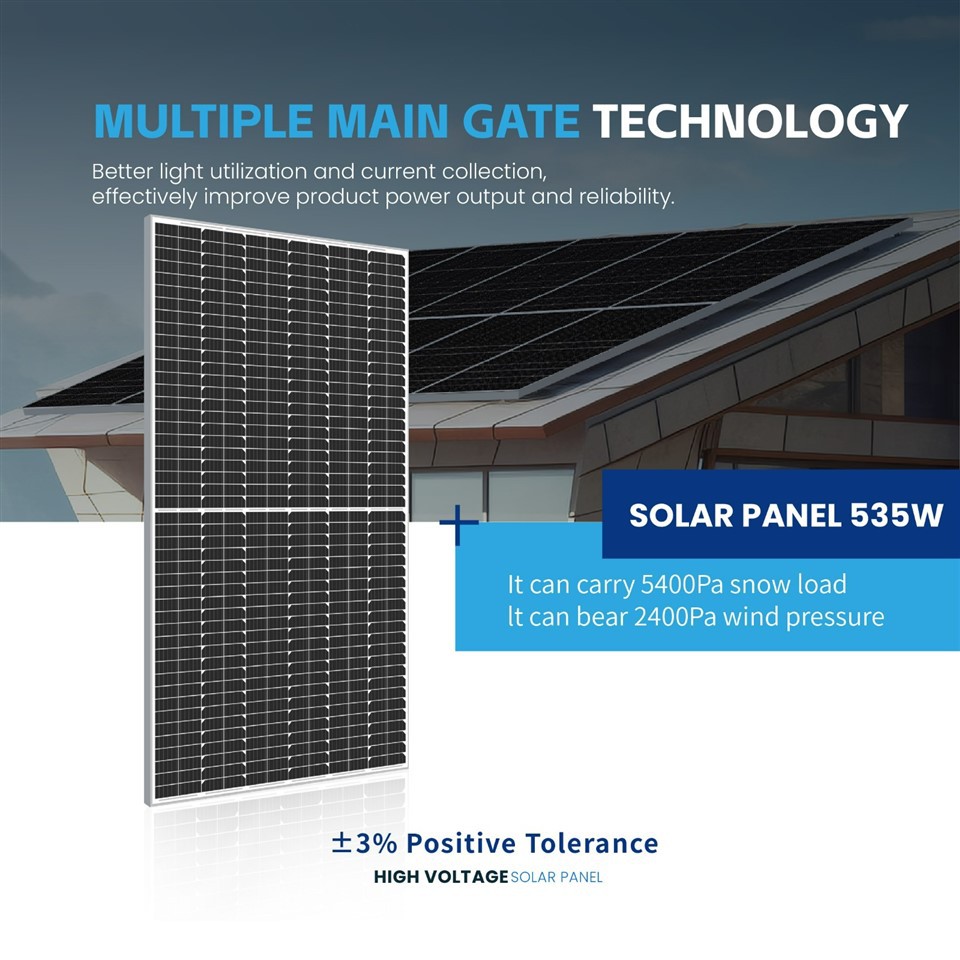

Multiple Main Gate Technology: Optimizes light utilization and current collection, effectively enhancing product power output and reliability.
Anti-PID Guarantee: Minimizes the attenuation rate caused by the PID phenomenon through battery production technology optimization and material control.
Excellent Weather Adaptability: Certified by third-party high salt spray and high ammonia corrosion tests, suitable for harsh environments like high-temperature and humidity areas, coastal regions, deserts, and lakes.
Super Mechanical Load: Withstands 5400Pa snow load and 2400Pa wind pressure, coping with extreme weather.
Power Warranty: 25-year linear power warranty with only 0.55% annual degradation; power tolerance of 0~+3% ensures power generation performance.
High-Quality Materials: Adopts premium materials and craftsmanship to ensure long-term stable operation.
Technical Parameters
Electrical Parameters (STC): Maximum power 535W, open-circuit voltage 480.24V, operating voltage 426.65V, short-circuit current 1.36A, operating current 1.25A, module efficiency 23.3%.
Mechanical Parameters: Monocrystalline cell type, 696 cells (29×12×2), dimensions 2278±1×1134±1×35±0.5mm, weight 27.2kg, 3.2mm anti-reflective coated tempered glass, white backsheet, anodized aluminum alloy frame.
Electrical Properties: Operating temperature -40℃~+85℃, maximum system voltage 1500V DC, maximum fuse rated current 25A, power tolerance ±3%.
Temperature Characteristics: Temperature coefficient of maximum power -0.34%/℃, temperature coefficient of open-circuit voltage -0.27%/℃, temperature coefficient of short-circuit current +0.045%/℃, nominal operating temperature 45±2℃.
