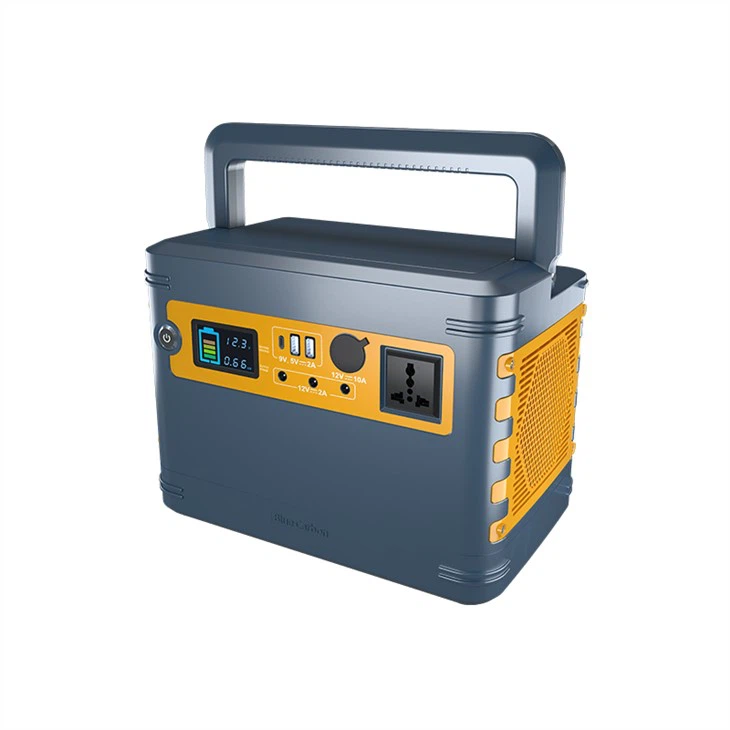

1kWh LiFePO₄ Battery Power Storage System

1kWh LiFePO₄ Battery Power Storage System

Battery Type: LiFePO₄
Battery Capacity: 12.8V/80Ah
Inverter: 220V/1.1KW Pure Sine
DC Output: 3*12V/2A
USB Output: 2*5V/2A
Type-C Output: 5V/2A
Car Charger Output: 12V/10A
AC Output Power: 220V/1.1KW
Highlights: Master Switch; LED Capacity Display; Hidden Handle
Send Inquiry
Description
Technical Specifications
Detail Showcase
Application

Products Description





  • Storage capacity: 1024 Wh (1.024 kWh)
  • Output: Built-in inverter (AC output for standard appliances)
  • Primary use: Short-term backup, low-power daily loads, off-grid/temporary power
  • Durability & environment:High-grade aluminum-magnesium alloy for corrosion resistance and superior heat dissipation.



product-1-1

product-1-1

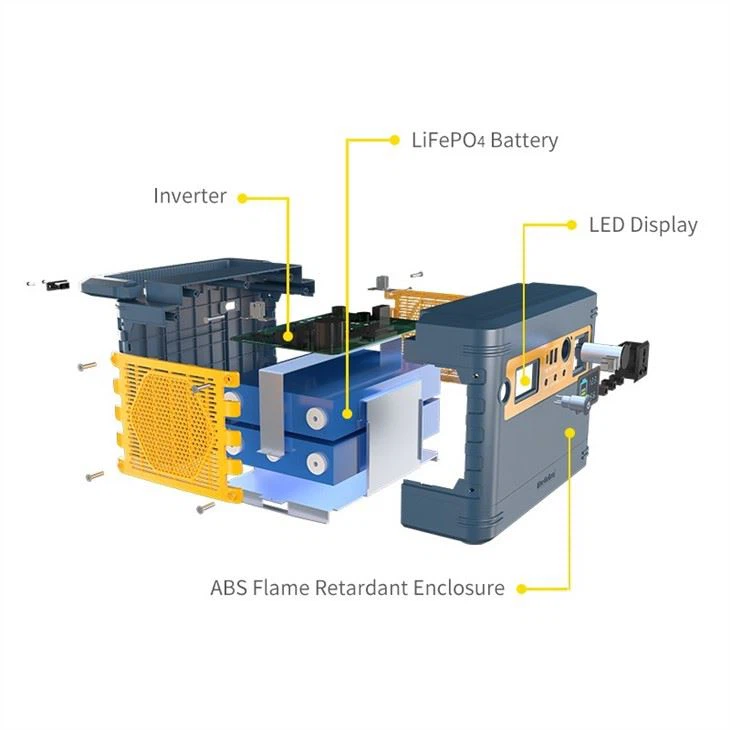

Products Details





H82408fbea15848688eb21aa82811859aU

product-1-1

Application Scenario





H1ff011a83172482298ddc38738fbd2c8t

Q: How long will it run my devices?
A: See the runtime table above. As a rule of thumb, divide 1024 Wh by device wattage (then reduce by ~10% to account for inverter losses).

Q: Can the unit be recharged by solar panels?
A: Yes - it's designed for solar charging. Recharge time depends on panel wattage and sun hours (provide panel specs and input charge current to calculate exact times).

Q: Is 1024 Wh the usable energy?
A: You provided 1024 Wh as storage capacity. In practice, usable AC energy is somewhat less after inverter losses; I used 90% efficiency for realistic estimates. If your battery has a recommended max depth-of-discharge (DoD) (e.g., 80–95%), adjust accordingly.

Technical Parameters



Model

BCT-SPS 12-80

Storage Capacity

80Ah/12.8V

Standard Capacity

1024Wh

USB Output

Two output 5V/2A

DC Output

Three output 12V/2A

Car Charger Output

12V/10A

Type-C Output

5V/2A

Charging Voltage

14.6-20V

Cut-Off

2.5V single cell

AC Output Power 220V/1.1KW

AC Output Frequency

50Hz; Pure sine wave

Depth of Discharge

>80%

Self-Discharge(25 ℃)

<3%/month

Working Temperature Range -20°C~70°C
Recommended Temperature Range   10°C~45°C
Warranty Battery warranty 3 years
Product Size 317×241×204mm



As a backup power,it widely used in power shortage and power unstable area. Clients love it because of its rich output design, good looking and stable performance.
