Blue Carbon extra long 6000 cycle times rechargeable 7680Wh Lithium Battery 24V Solar Energy 300Ah home solar power system
Product Display
|
Nominal Capacity
|
300AH
|
|
Nominal Voltage
|
24V(25.6V)
|
|
Electricity(kWh)
|
7.68kWh
|
|
Full Charge Voltage
|
29.2V
|
|
Discharge Cut-off Voltage
|
20V-24V
|
|
Over-Discharge Delay Protection
|
1000ms
|
|
Continuously Use Output Current
|
100A
|
|
Input Voltage Range
|
28V-30V
|
|
Overcharge Delay Protection
|
1000ms
|
|
Short Circuit Protection Delay
|
300us
|
|
Short Circuit Protection Recovery |
Disconnect load |
|
Cell type |
LiFePO4 Battry/LFP |
|
Operating temperature range |
-15°C-60°C |
|
Depth of discharge |
>80% |
|
C-rate Discharge |
<0.8C |
|
Cycle life |
> 6000times(<0.5C) |
Product Description:
Nominal Capacity: The Blue Carbon battery has a nominal capacity of 300AH, ensuring ample power for your home's energy requirements.
Nominal Voltage: Operating at a nominal voltage of 24V (25.6V), this battery delivers consistent and reliable power.
Electricity (kWh): With a total energy capacity of 7.68kWh, this battery provides a substantial amount of power to meet your daily energy demands.
Full Charge Voltage: The battery reaches a full charge at a voltage range of 29.2V, ensuring optimal performance.
Discharge Cut-Off Voltage: To protect the battery from overdischarge, the discharge cut-off voltage is set at 20V-24V.
Rshoot Delay Protection: The battery features a 1000ms delay protection mechanism to safeguard against sudden fluctuations in voltage or current.
Continuously Use Output Current: With a continuously use output current of 100A, this battery can handle high-power applications without compromising performance.
Input Voltage Range: The battery accepts an input voltage range of 28V-30V, allowing for flexible charging options.
Over-Discharge Delay Protection: To prolong the battery's lifespan, it is equipped with over-discharge delay protection, triggering a 1000ms delay before shut-off.
Short Circuit Protection Delay and Recovery: The battery features short circuit protection with a 300us delay. In the event of a short circuit, the load is disconnected, keeping the battery and connected devices safe.
Cell Type: The battery utilizes LiFePO4 (LFP) battery cells, known for their high energy density and long lifespan.

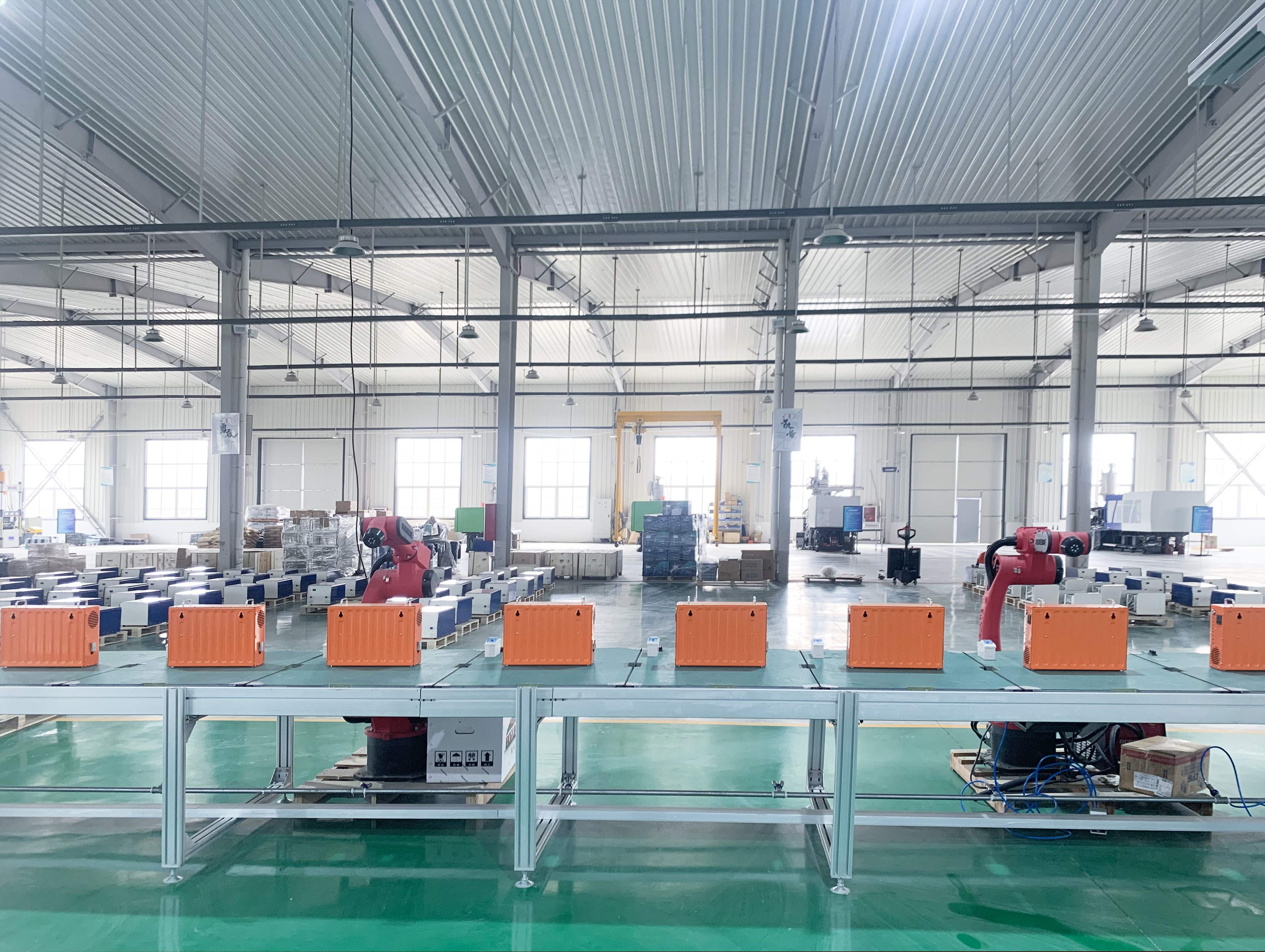

Company Profile
