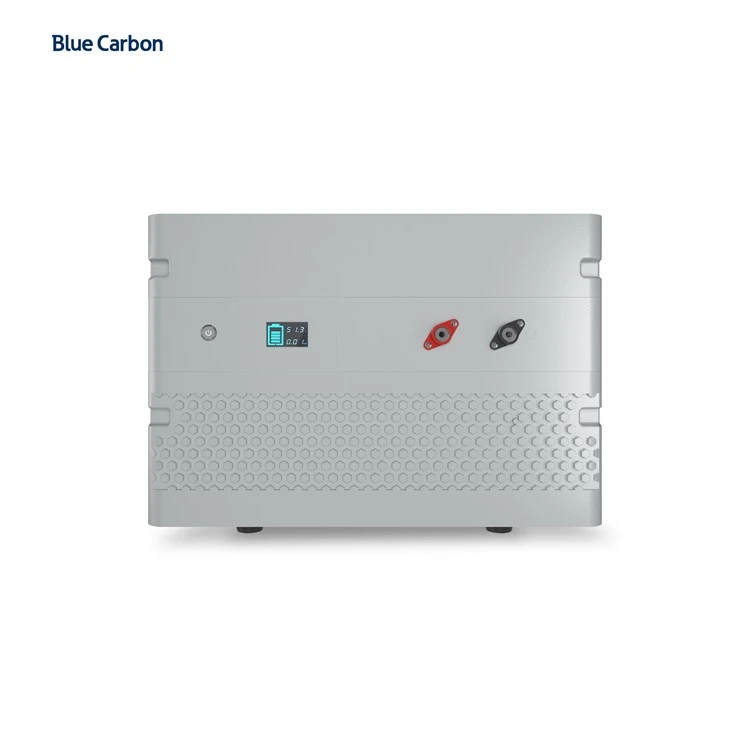

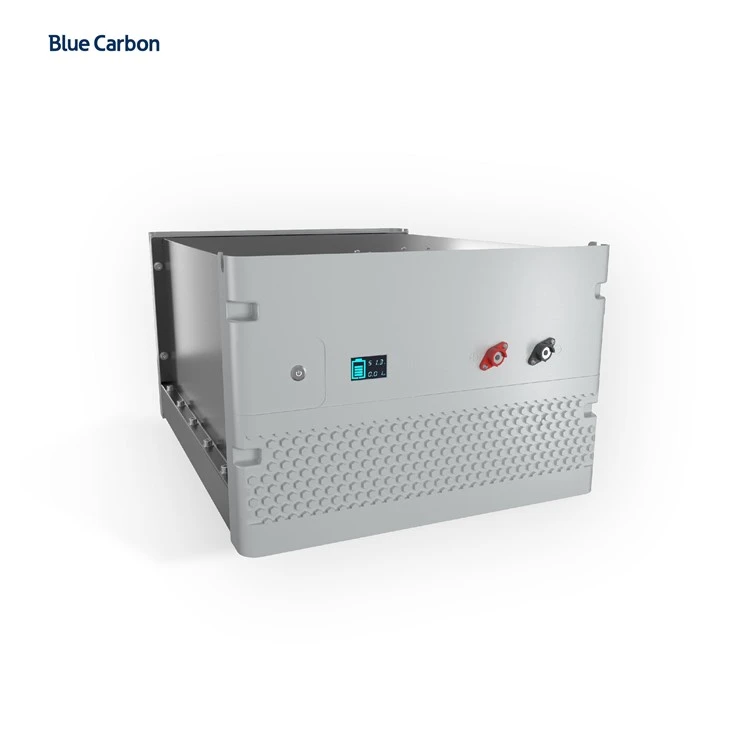

Smart BMS Lithium Iron Phosphate LiFePO4 Battery 48V 200Ah 250Ah 300Ah for Residential
Empower your community with clean, reliable energy and be at the forefront of sustainable development! Our solar energy storage plants are not only environmentally friendly, but they also provide numerous benefits to local communities. From creating job opportunities and reducing reliance on non-renewable resources to stabilizing the energy grid and improving grid resilience, our plants are the key to a sustainable future. Together, let's build a greener, stronger, and more prosperous community.
|
Model
|
BCT-UU 48-200
BCT-UU 48-250
BCT-UU 48-300
|
|
|
Basic
Specifications
|
Nominal Capacity
|
200Ah/250Ah/300Ah
|
|
Nominal Voltage
|
48V (51.2V)
|
|
|
Electricity (kWh)
|
10.24kWh
12.8kWh 15.36kWh |
|
|
Input
|
Full Charge Voltage
|
58.4V
|
|
Maximum Charging Voltage
|
60V
|
|
|
Input Voltage Range
|
58V-60V
|
|
|
Continuously Use Input Current
|
120A
|
|
|
Maximum Solar Panel Input Current
|
120A
|
|
|
Rshoot Delay Protection
|
1000ms
|
|
|
Output
|
Continuously Use Output Current
|
120A
|
|
Discharge Cut-Off Voltage
|
44V-46V
|
|
|
Over-Discharge Delay Protection
|
1000ms
|
|
|
Short Circuit Protection Delay
|
300us
|
|
|
Short Circuit Protection Recovery
|
Disconnect Load
|
|
|
Instant Start Current
|
120A
|
|
|
Battery
|
Cell Type
|
LiFePO4 Battery/LFP
|
|
Storage Temperature Range
|
Short-Term -20℃-40℃ (Within 1 Month)
Long-Term 10℃-35℃ (Within 1 Year)
|
|
|
Operating Temperature Range
|
-15℃-60℃
|
|
|
Recommended Temperature Range
|
10℃-40℃
|
|
|
Storage Humidity
|
≤75％ RH
|
|
|
Atmospheric Pressure
|
Below the elevation of 5000m
|
|
|
Self-Discharge ( 25°C)
|
＜3％/Month
|
|
|
Depth Of Discharge
|
＞80％
|
|
|
C-rate Discharge
|
＜0.8C
|
|
|
Cycle Life
|
＞6000 times(＜0.5C)
|
|
|
Other
|
Certification Standards
|
UN38.3/CE/MSDS
|
|
Warranty
|
10 years
|
|
|
Product Size
|
798±2×565±2×401±2mm
|
|
|
Packing Size
|
903±2×671±2×451±2mm
|
|
