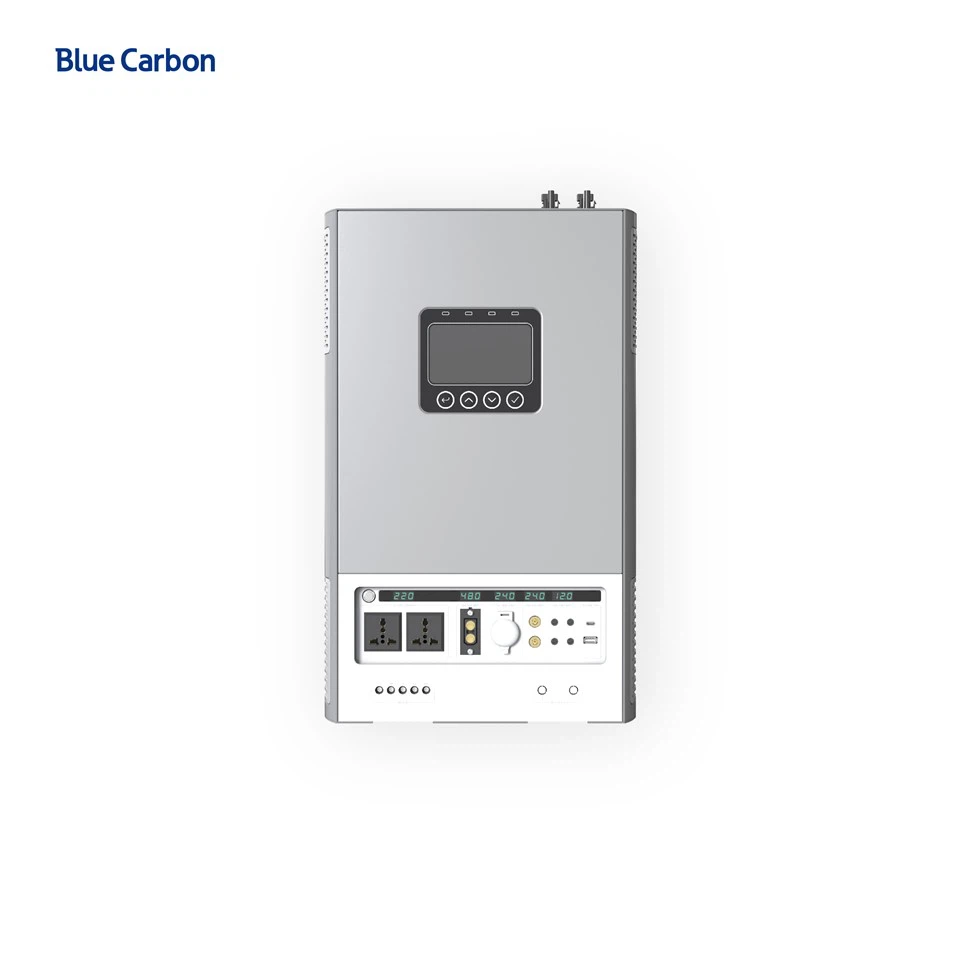

BCT-6+6KW Integrated AC+DC Hybrid Inverter - Residential &Small Commercial PV Energy Storage Solution
Product Overview
The BCT-6+6KW is a highly integrated photovoltaic storage system designed by Blue Carbon for residential and light commercial applications. This product combines an AC 6kW output with a DC 6kW output, enabling it to connect to PV (DC), storage batteries and utility power (AC) simultaneously. Its built-in EMS intelligently manages power, prioritising PV usage, self-consumption, feeding surplus to the grid and providing UPS-level emergency power during outages. The device features a wide MPPT operating range (120–450V), an integrated 80A solar charger, and multiple protection mechanisms. This simplifies installation, commissioning, and maintenance. This makes it the preferred choice for projects seeking system simplification, reduced engineering costs, and enhanced reliability.
product Advantages
BCT-6+6KW
All-in-One Multifunctional Design

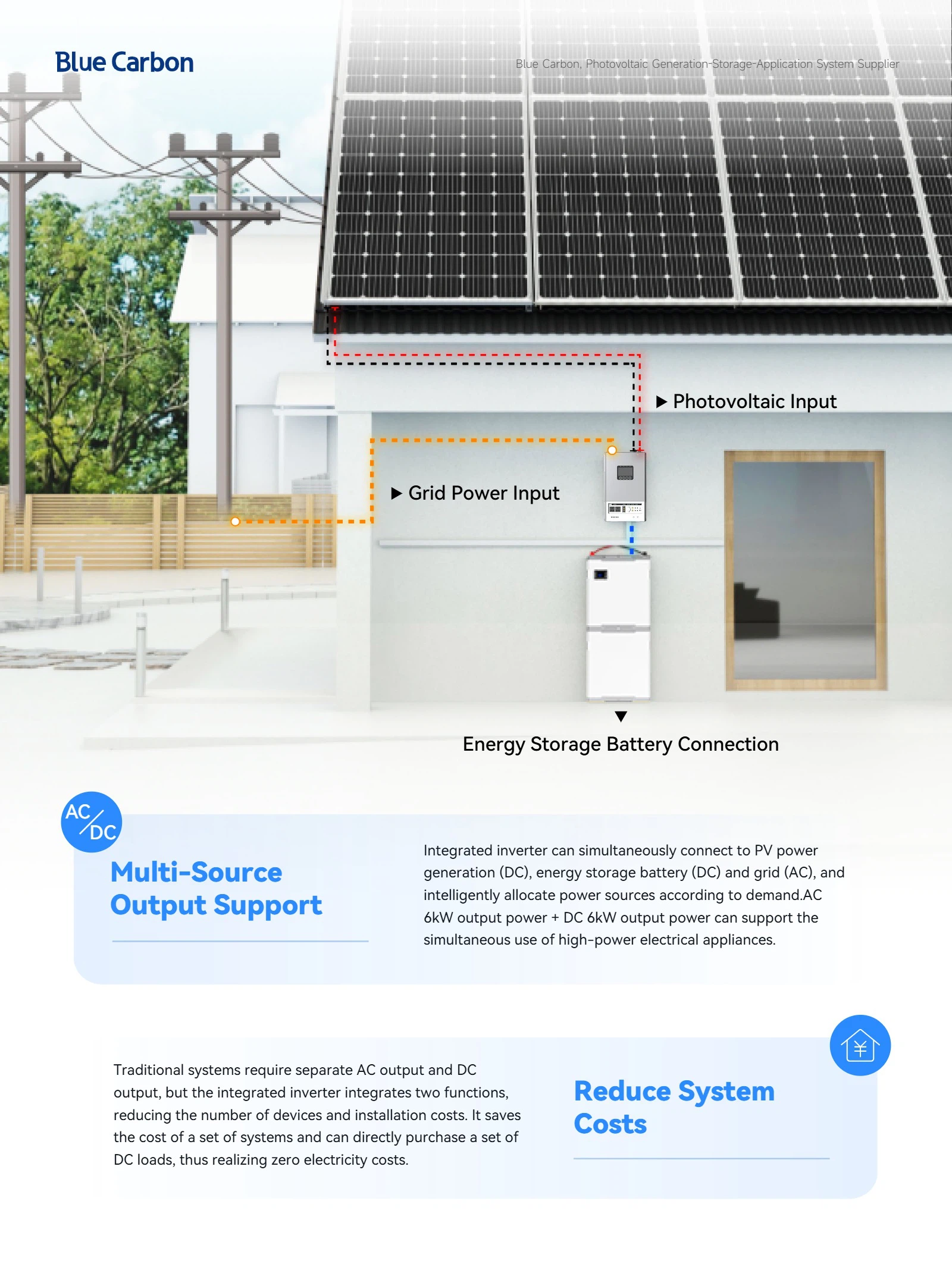

Integrated 80A MPPT solar charge controller (120–500V), built-in WiFi monitoring, and intelligent energy source management. Supports simultaneous input from solar panels, batteries, and the grid.
Cost-Effective & Easy to Install
This inverter integrates AC and DC outputs, reducing device count and installation costs. Supports direct DC loads for lower system cost and zero electricity bills.
Dual High Power Output (AC + DC)

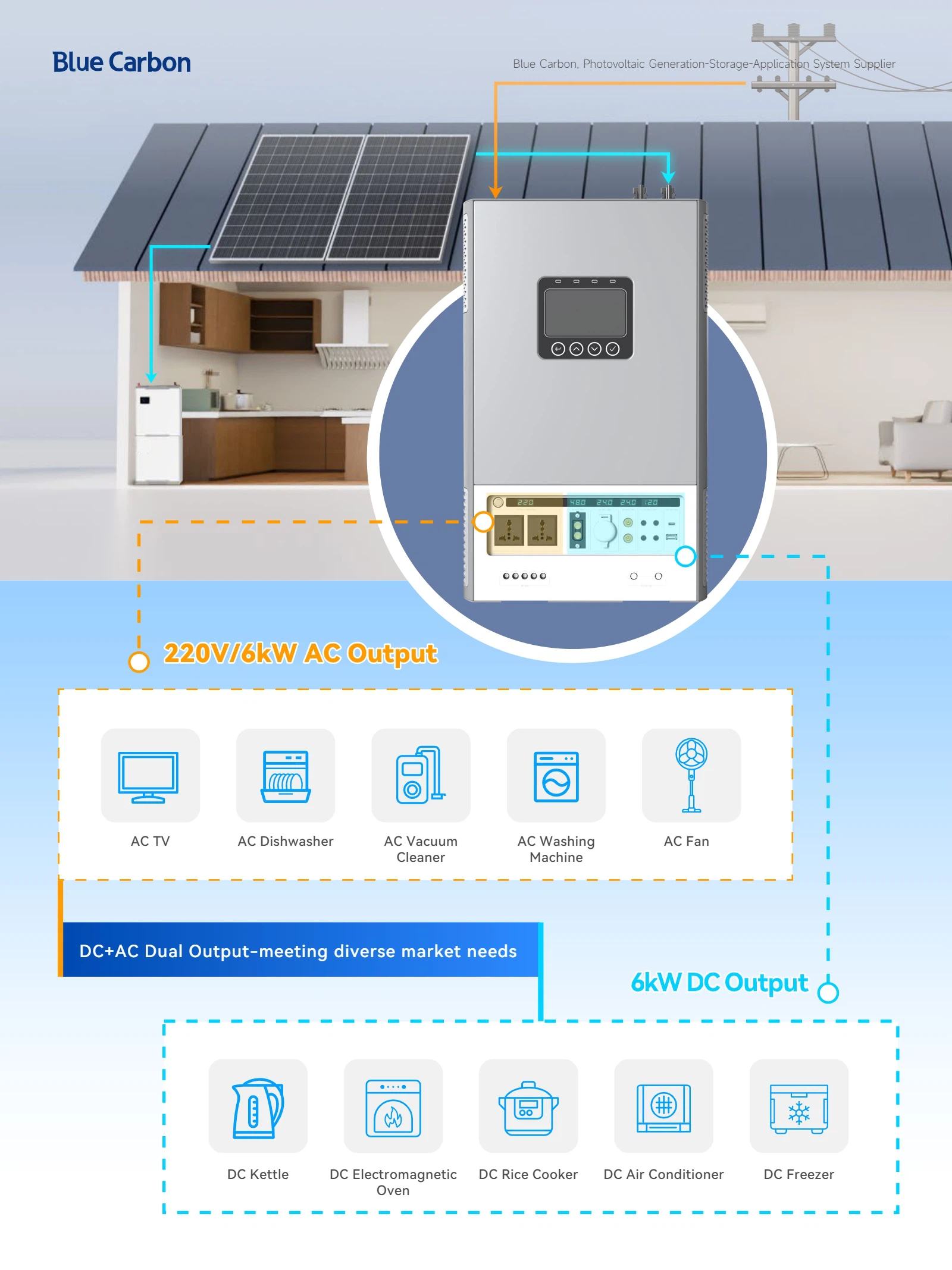

Delivers 6kW AC + 6kW DC output, capable of powering high-wattage appliances and direct DC loads simultaneously.
Smart Protection & Safety
Built-in overvoltage, overcurrent, and short-circuit protection ensure stable and safe system performance.
Smart Connectivity & Monitoring
Supports CAN/RS485 BMS communication and optional WiFi/GPRS for real-time remote monitoring and intelligent energy management.
Wide MPPT & Maximum Solar Output
Supports MPPT from 120-450V and up to 500Voc, ensuring optimal solar energy utilization across varying solar conditions.
Application Scenario
Application Scenario
- Residential PV + Energy Storage (Whole-House Backup Power, Nighttime Self-Consumption)
- Our services are available to small retail outlets, convenience stores, and supermarkets. We offer protection for cold chains and POS systems.
- Applications in remote and off-grid locations, including rural areas, construction sites, and agricultural irrigation systems.
- Microgrids and Community Energy Stations facilitate the integration of grid-connected self-generation and the export of surplus power.
- This is a backup power solution for small industrial and communication base stations.
